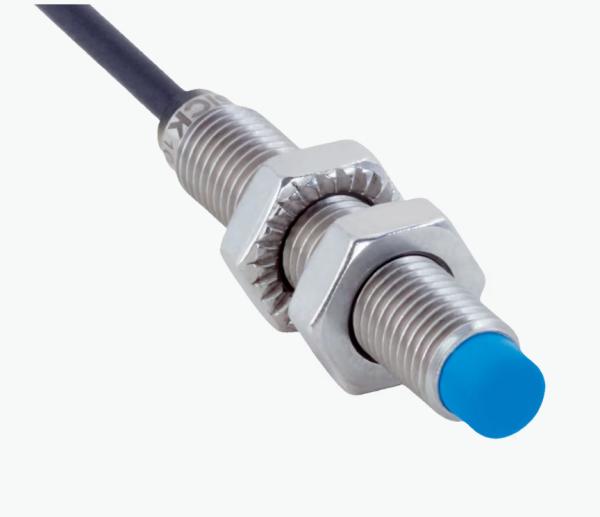

SICK IMB08-04NNSVU2S ProXimity Sensor,4mm Range,UnShielded,NPN,Normally Open, Part No 1072689

Product Categories

Xiamen ZhiCheng Automation Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: SICK IMB0804NNSVU2S ProXimity Sensor4mm RangeUnShieldedNPNNormally Open Part No 1072689
Brand: Sick
Price: 1 USD

Brand Name : Sick

Model Number : IMB08-04NNSVU2S

Certification : CE

Place of Origin : Germany

MOQ : 1

Price : variable

Payment Terms : T/T

Supply Ability : 30PCS/WEEKS

Delivery Time : Negotiate

Packaging Details : Carton

Description : ProXimity Sensor, 4mm Range, UnShielded, NPN, Normally Open, 2m Cable

Part no : 1072689

Thread size : M8 x 1

Diameter : Ø 8 mm

Sensing range Sn : 4 mm

Safe sensing range Sa : 3.24 mm

Installation type : Non-flush

Electrical wiring : DC 3-wire

Switching frequency : 4,000 Hz

Contact Now

SICK IMB08-04NNSVU2S ProXimity Sensor,4mm Range,UnShielded,NPN,Normally Open, Part No 1072689

Features

Housing	Cylindrical thread design
Housing	Standard design
Thread size	M8 x 1
Diameter	Ø 8 mm
Sensing range S_n	4 mm
Safe sensing range S_a	3.24 mm
Installation type	Non-flush
Switching frequency	4,000 Hz
Connection type	Cable, 3-wire, 2 m
Switching output	PNP
Output function	NO
Electrical wiring	DC 3-wire
Enclosure rating	IP68 ¹⁾
Enclosure rating	IP69K ²⁾
Special features	Resistant against coolant lubricants, Visual adjustment indicator, IO-Link, Temperature resistance
Special applications	Zones with coolants and lubricants, Mobile machines, Difficult application conditions
Items supplied	Mounting nut, V2A stainless steel, with locking teeth (2x)

Mechanics/electronics

Supply voltage	10 V DC ... 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2 V ¹⁾
Hysteresis	3 % ... 20 %
Reproducibility	≤ 2 % ²⁾ ³⁾
Temperature drift (of S_r)	± 10 %
EMC	According to EN 60947-5-2
Continuous current I_a	≤ 200 mA
No load current	≤ 10 mA
Cable material	PUR
Conductor size	0.14 mm²
Cable diameter	Ø 3 mm
Short-circuit protection	✔
Reverse polarity protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	100 g / 11 ms / 1000 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz, 1 mm / 55 Hz ... 500 Hz / 15 g
Ambient operating temperature	–40 °C ... +100 °C
Housing material	Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material	Plastic, LCP
Housing length	45 mm
Thread length	37 mm
Tightening torque, max.	Typ. 7 Nm ⁴⁾
Tightening torque, max.	Typ. 14 Nm ⁵⁾
Protection class	III
UL File No.	E181493

Communication interface

Communication interface	IO-Link V1.0
Communication Interface detail	COM2 (38,4 kBaud)
Process data length	1 Byte
Process data structure	Bit 0 = Sr reached
Process data structure	Bit 1 = Sa reached

Reduction factors

Note	The values are reference values which may vary
St37 steel (Fe)	1
Stainless steel (V2A, 304)	Approx. 0.69
Aluminum (Al)	Approx. 0.37
Copper (Cu)	Approx. 0.28
Brass (Br)	Approx. 0.4
