Compact and Sturdy Design

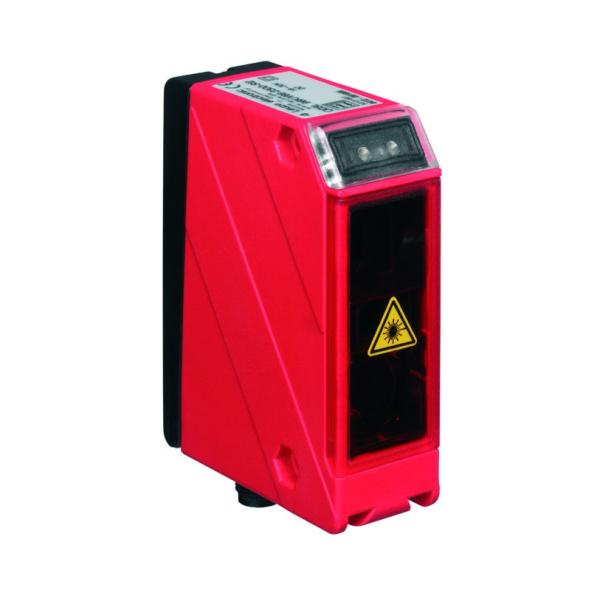

The LEUZE ODSL96K/V66 - 2300 - S12 features a compact and sturdy design. Measuring 30 mm in width, 90 mm in height, and 70 mm in length, it can be easily installed in various industrial setups, even in tight spaces. Its housing is made of durable plastic (PC), providing excellent protection against dust and water, with an IP67 rating. The device has a 5 - pin M12 connector, ensuring a reliable and stable connection. With a net weight of only 140 g, it is lightweight yet robust enough to withstand the vibrations and harsh conditions often found in industrial environments.
Exceptional Sensing Performance
Equipped with advanced optical sensing technology, this sensor offers outstanding performance. It has a measurement range from 150 to 2300 mm, making it suitable for a wide range of applications. The laser - based light source, which emits red light, provides high - precision detection. The sensor can achieve an accuracy of 3% and a repeatability of 2%, allowing for consistent and reliable measurements. With a fast measurement time of 2 to 7 ms, it can keep up with high - speed industrial processes. The sensing mechanism is highly sensitive, capable of precisely distinguishing between different target objects, and it has a geometric resolution of 1.0 to 5.0 mm.
Versatile Applications
The ODSL96K/V66 - 2300 - S12 is widely applicable across multiple industries. In the manufacturing industry, it can be used for quality control, such as measuring the dimensions of products or detecting the presence of components. In the logistics sector, it helps in tracking the position of goods on conveyor belts or in automated storage systems. In the automotive industry, it plays a crucial role in vehicle assembly, for example, by accurately measuring the distance between parts during the manufacturing process. Its versatility makes it an essential component in modern industrial automation systems, contributing to increased productivity and improved quality control.
|
Attribute
|
Details
|
|
Product Model
|
ODSL96K/V66 - 2300 - S12
|
|
Manufacturer
|
LEUZE
|
|
Dimensions
|
30 mm (width) x 90 mm (height) x 70 mm (length)
|
|
Housing Material
|
Durable plastic (PC)
|
|
Protection Rating
|
IP67 (dust - tight and protected against water immersion)
|
|
Connector Type
|
5 - pin M12 connector
|
|
Weight
|
140 g
|
|
Sensing Technology
|
Advanced optical sensing with laser - based red light source
|
|
Measurement Range
|
150 - 2300 mm
|
|
Accuracy
|
3%
|
|
Repeatability
|
2%
|
|
Measurement Time
|
2 - 7 ms
|
|
Geometric Resolution
|
1.0 - 5.0 mm
|
|
Applications
|
Manufacturing (quality control - product dimension measurement, component detection), Logistics (goods position tracking on conveyor belts, in automated storage systems), Automotive (vehicle assembly - part distance measurement)
|
